Product
Series Products
OPL2500
Ｗireless doorbell camera
OPL2500
Smart feature watch
OPL2500

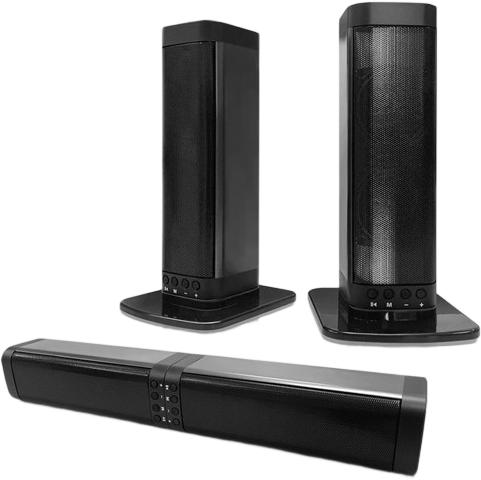

Wireless Speaker & Soundbar
OPL2500

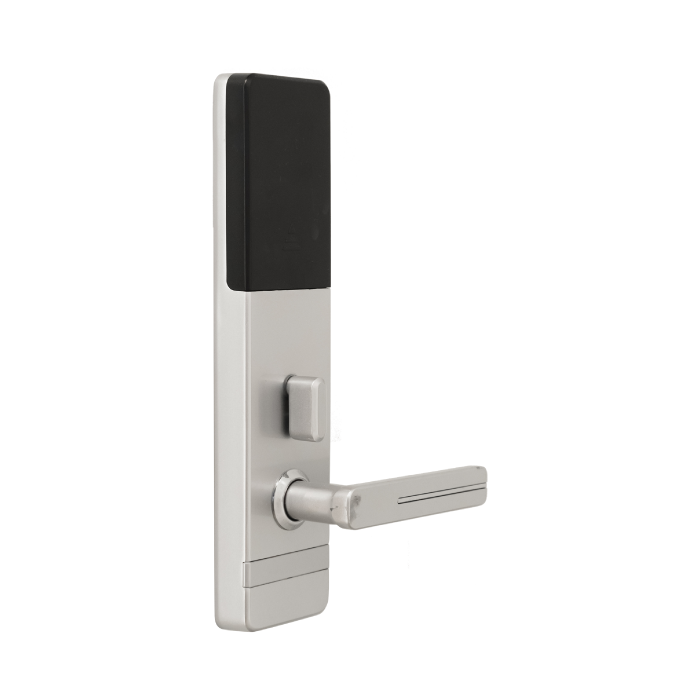

DinDin Smart Lock
OPL2500

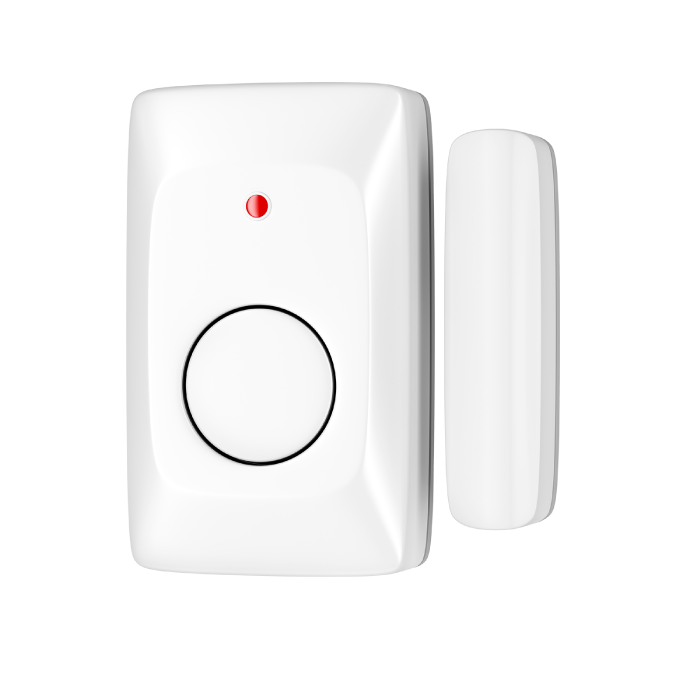

Magnetic Door Sensor
OPL2500

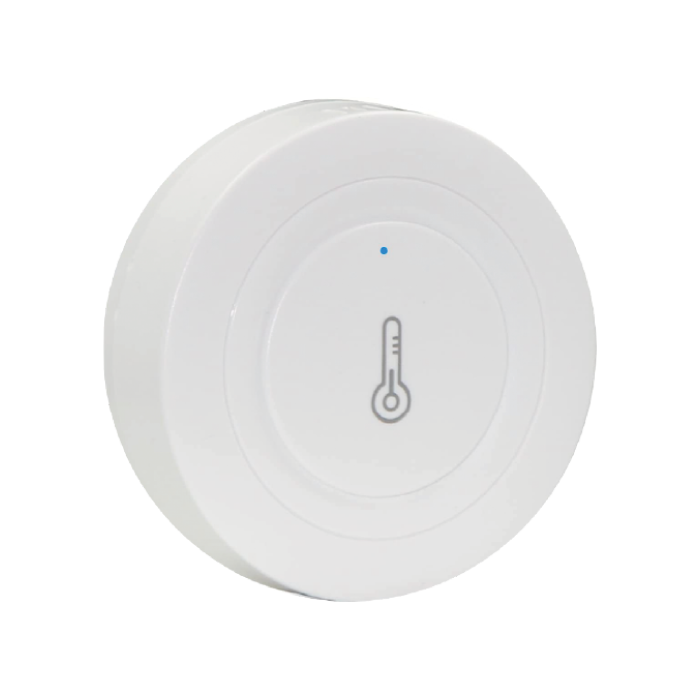

OUVOPO Smart Temp. & Humid. Sensor
OPL1000

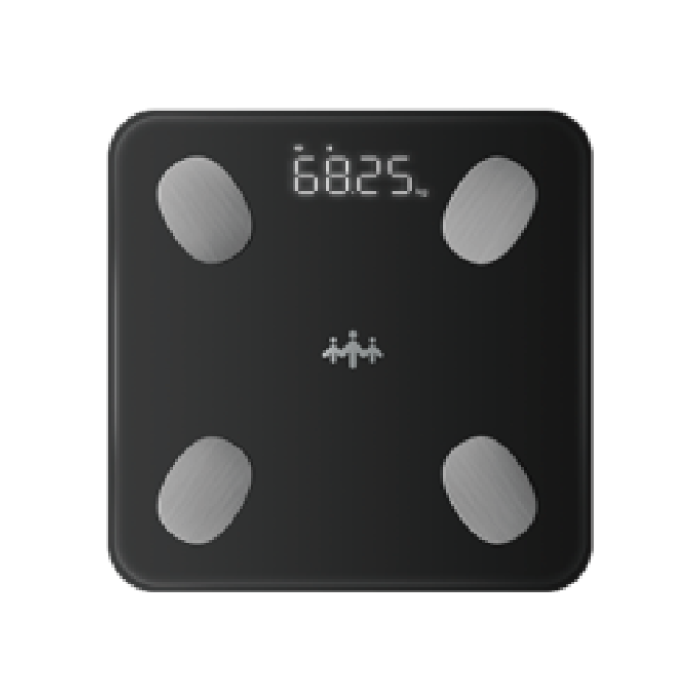

Lifesense Smart Scale
OPL1000

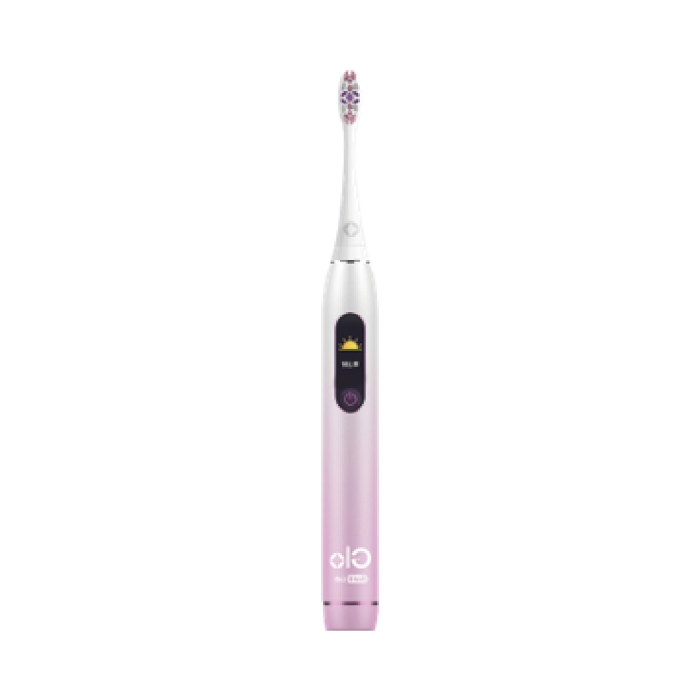

OralB, Smart, Toothbrush
OPL1000

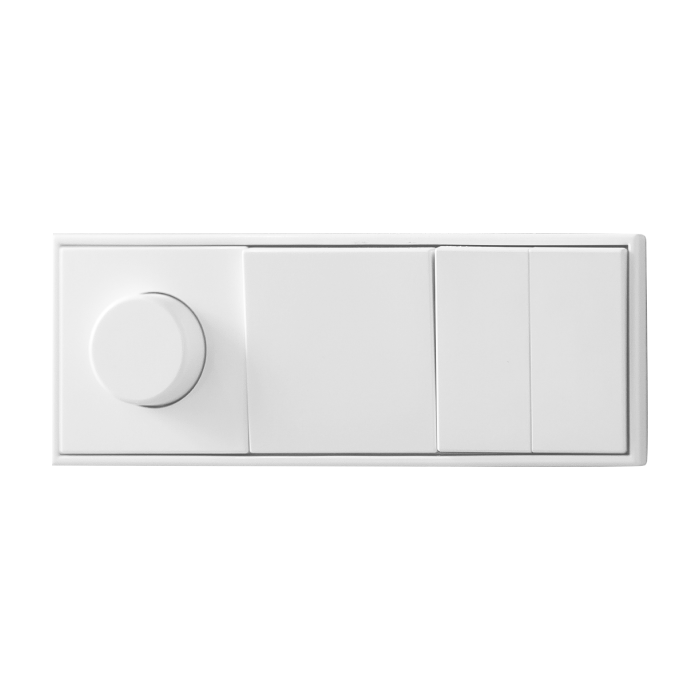

Single-wire Smart Switch
OPL1000

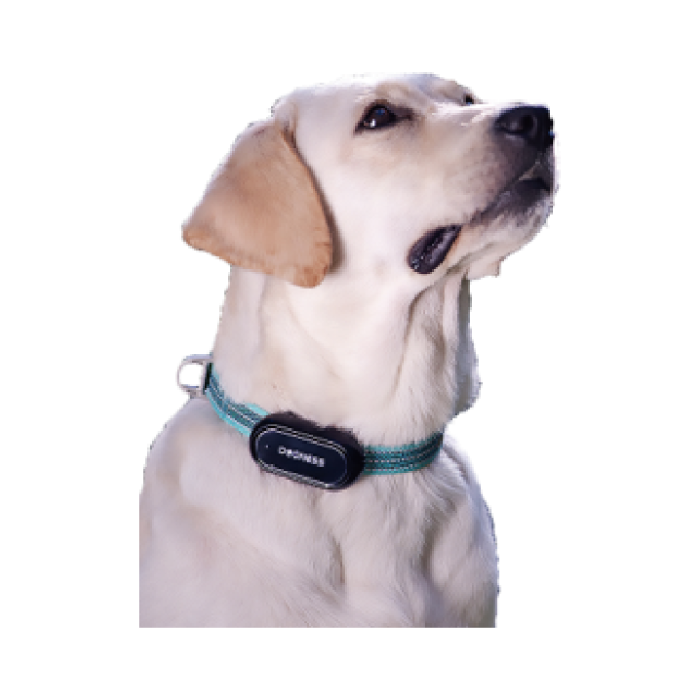

Tracker
OPL 2500 version
OPL 2500M
- Features Wireless
High Quality Audio/Video Solution
- Highlights
High-definition lossless low-latency audio and video transmission
- Application
Wireless gaming headsets, wireless theater speakers, gaming joysticks
- Sleep Function
Customized Design
| Embedded Flash | 8Mbits |
|---|---|
| Firmware | Customized SDK |
| XIP | Yes |
| SRAM | 528KB |
| WIFI | 802.11 b/g/n/ax with 20MHz BW |
| Security | WPA/ WPA2/ WPA3 |
| LE | 5.2 with 2Mbps, Long distance |
OPL 2500P
- Features
Low-power WIFI6 IOT dual-mode solution
- Highlights
Ultra-low power consumption WIFI6 dual mode
- Application
Batteries and general IoT applications
- Sleep Function
Turned on
| Embedded Flash | 8Mbits |
|---|---|
| Firmware | Standard OPL2000 Series SDK |
| XIP | Yes |
| SRAM | 528KB |
| WIFI | 802.11 b/g/n/ax with 20MHz BW |
| Security | WPA/ WPA2/ WPA3 |
| LE | 5.2 with 2Mbps, Long distance |
OPL 2500S
- Features Wireless
WIFI6 IOT dual-mode solution
- Highlights
Low cost WIFI6 dual mode
- Application
General IoT applications
- Sleep Function
Turned off
| Embedded Flash | 8Mbits |
|---|---|
| Firmware | Standard OPL2000 Series SDK |
| XIP | Yes |
| SRAM | 528KB |
| WIFI | 802.11 b/g/n/ax with 20MHz BW |
| Security | WPA/ WPA2/ WPA3 |
| LE | 5.2 with 2Mbps, Long distance |

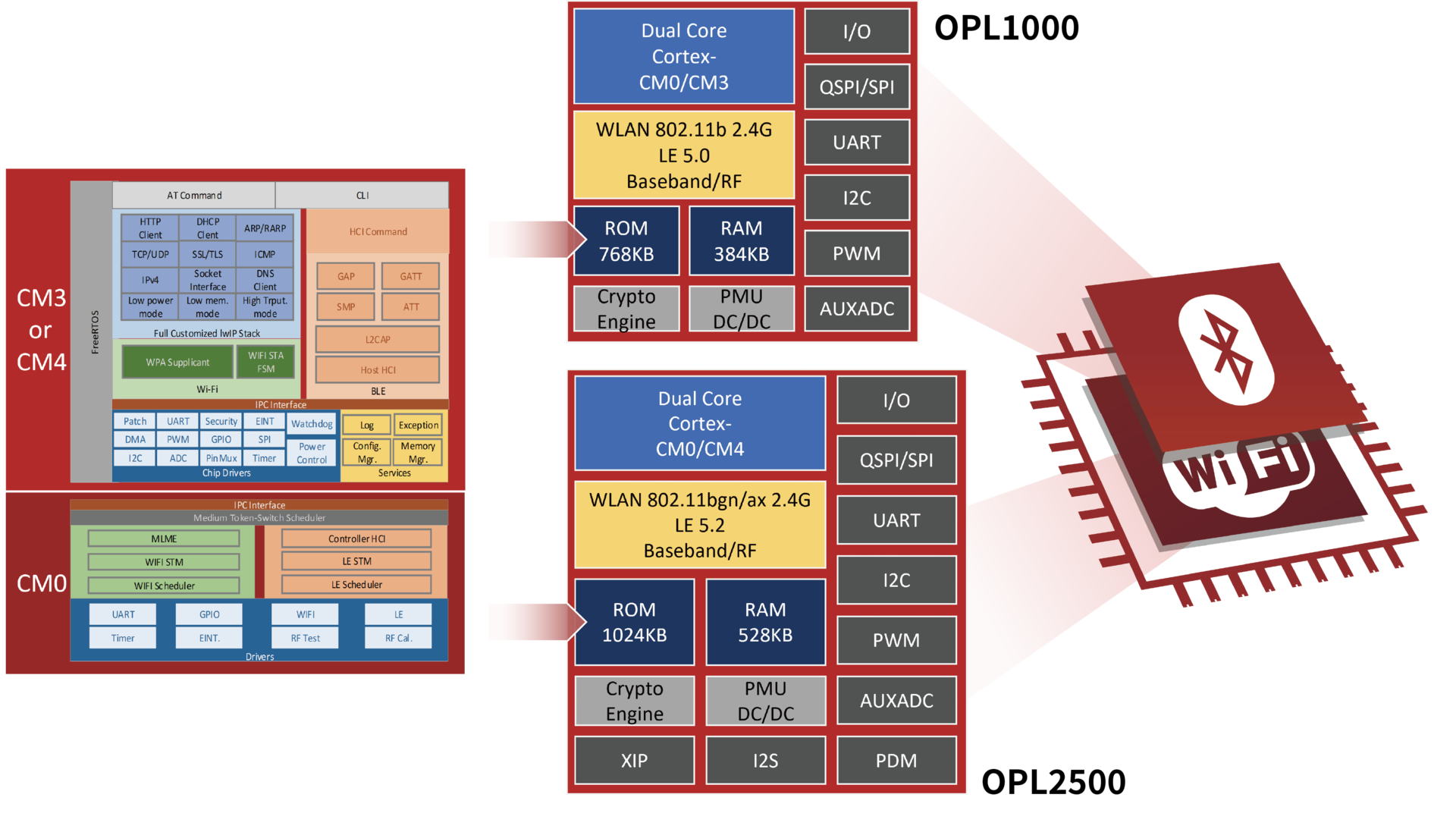

OPL 1000 version

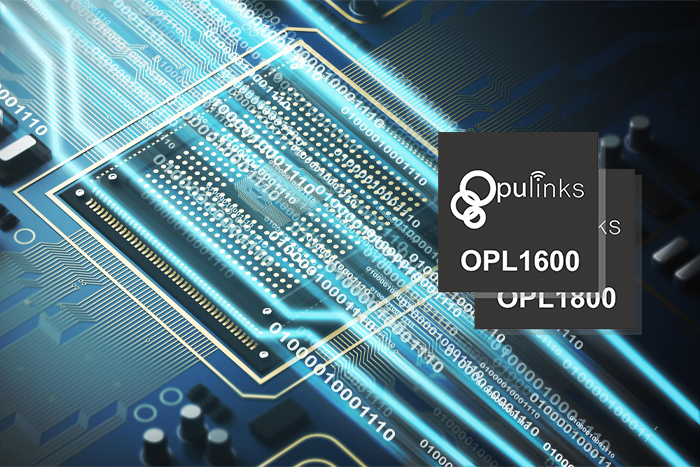

OPL 1600 to 1800
- Features Wireless
General Dual Mode Requirements
- Highlights
Low cost dual mode
- Application
Various IoT applications
- Sleep Function
Turned on
| Embedded Flash | 8Mbits |
|---|---|
| Firmware | Standard OPL2000 Series SDK |
| XIP | No |
| SRAM | 384KB |
| WIFI | 802.11 b |
| Security | WPA/ WPA2 |
| LE | 5.0 with 2Mbps |
OPL 1600
- Features
Extreme low power consumption WIFI/BLE IOT dual-mode solution
- Highlights
Ultra Low Power Dual Mode
- Application
Battery Powered IoT Applications
- Sleep Function
Turned on
| Embedded Flash | 8Mbits |
|---|---|
| Firmware | Standard OPL2000 Series SDK |
| XIP | No |
| SRAM | 384KB |
| WIFI | 802.11 b |
| Security | WPA/ WPA2 |
| LE | 5.0 with 2Mbps |
Development Process
Evaluate
Carry out product suitability and feasibility evaluation based on product characteristics, such as performance, power consumption, memory, networking convenience, etc.
Develop
Provide (HDK) and (SDK), and also provide a rapid development framework package solution (QuickDev Framework), including productizable application layer code, and various reference designs to help customers quickly develop product projects
Verify
During the product development process, engineers conduct unit testing and integration testing on each module; after product development is completed, use automated test scripts to conduct functional testing and stress testing on the system surface
Mass Production
After the customer completes the product development and enters the mass production stage, provide tools such as firmware download, function test, and mobile app to assist the customer in mass production testing
